High-performance automated concrete batching with output from 25 to 90 Cu.Mtr/Hr. Twin Shaft, PAN, and Planetary mixers — SCADA ready, built to last.

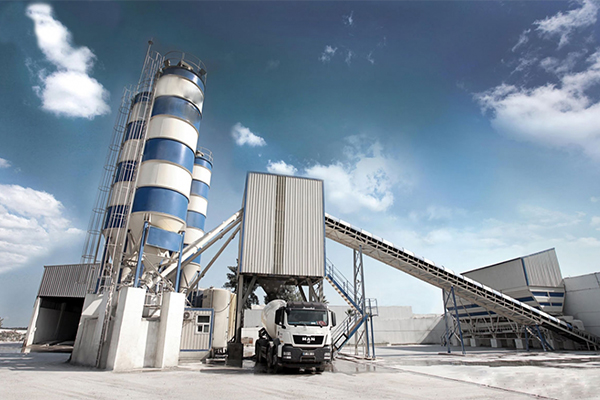

The Ultracon Stationary Concrete Batching Plant series is designed for large-scale, continuous concrete production at fixed job sites such as highways, bridges, airports, dams, and industrial complexes.
Available in 7 models — UHI-25 through UHI-90 — each unit features precision material weighing via digital load cells, planetary gear-box main drive, and a fully automatic PLC or SCADA-based control system with optional internet connectivity.
All UHI-series plants come standard with planetary gear-box main drive and digital load-cell weighing. Select a model below.
| Specification | UHI-25 | UHI-30 | UHI-36 | UHI-45 | UHI-60 | UHI-75 | UHI-90 |
|---|---|---|---|---|---|---|---|
| Mixer Type | Twin Shaft / PAN | Twin Shaft / PAN / Planetary | Twin Shaft / PAN | Twin Shaft / PAN | Twin Shaft / PAN | Twin Shaft / PAN | Twin Shaft / PAN |
| Output Capacity | 25 Cu.Mtr/Hr | 30 Cu.Mtr/Hr | 36 Cu.Mtr/Hr | 45 Cu.Mtr/Hr | 60 Cu.Mtr/Hr | 75 Cu.Mtr/Hr | 90 Cu.Mtr/Hr |
| Discharge Height | 4.1 MTR | 4.2 MTR | 4.1 MTR | 4.1 MTR | 4.1 MTR | 4.1 MTR | 4.1 MTR |
| Main Gear Drive | Planetary Gear Box | Planetary Gear Box | Planetary Gear Box | Planetary Gear Box | Planetary Gear Box | Planetary Gear Box | Planetary Gear Box |
| Control System | Fully Automatic | Fully Automatic | Fully Automatic | Fully Automatic + SCADA | SCADA + Internet | SCADA + Internet | SCADA + Internet |
| Fly Ash Feeding | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
| Moisture Control | Optional | Optional | Optional | Standard | Standard | Standard | Standard |
Get a free consultation and custom quote from our engineering team today.
